EOSMART
Portable Low-cost lightweight laser obstacle remover, suitable for both household and commercial use. Best for laser tree trimming.

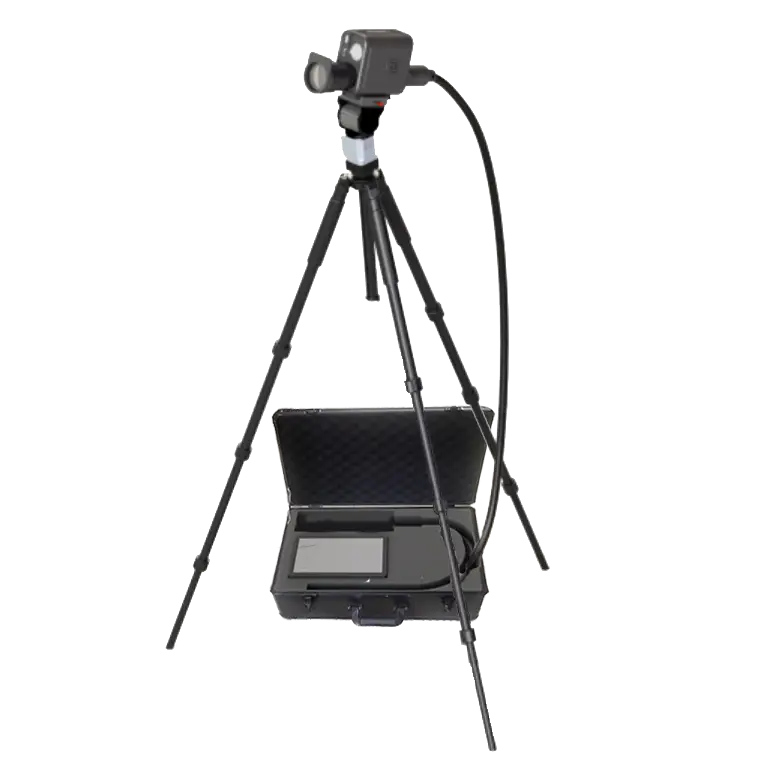

A portable laser obstacle remover, long-distance laser obstacle clearing device, with the same function as high-power models, but with slightly lower power. Low cost, lightweight totally more than 10kg, all components integrated into a suitcase and a tripod gimbal bag.
Unlike other laser systems that rely on prolonged thermal accumulation (requiring seconds of exposure to burn through obstacles), our advanced laser cut tree branch system employs real-time auto-focusing technology. The integrated LiDAR module continuously monitors target distance, dynamically adjusting optical elements to maintain tight beam convergence exactly at the branch surface. This eliminates dangerous energy dispersion – a critical factor since beam divergence as small as 0.5° could expand the hotspot to 8cm diameter at 10m range, significantly increasing ignition risks.The focal point from 7 meters to 30 meters is only 0.3-3mm, which can effectively penetrate objects such as tree branches. There is a function to prohibit the emission of laser from creatures.
Portable laser obstacle remover professionally use for cutting tree branch, safety protection, no fire, no high temperature, relying on the impact force of laser focusing to vaporize tree branches.
| Specifications | 250W |
| Model | CB-TF-S |
| Target of the attack | Branch, Floater, Hornet’s nests and bird nests |
| Hit the distance | Branches: 7-30meters, the closer the distance, the faster the efficiency. |
| Floating objects: 7-100 m | |
| Hornet’s nest and bird’s nest: 7-100 meters | |
| Wave length | 1080±10nm |
| Focus size | Diameter 3mm strong focused at a distance of 30 meters |
| Typical trimming time | Branches: 10cm live branches for 5-10 minutes. |
| Laser indication function | Align the screen cross cursor coaxially |
| Long-range aiming system | 0-500x zoom HD camera |
| Robotic Pan-Tilt Head | High precision servo, equipped with tripod, 360 degrees horizontal rotation, ±85 degrees longitudinal. |
| Platform accuracy | 0.0001° |
| communication mode | WIFI 15 Meter (customizable up to 200 meter) |
| Biological protection | Radar protection prohibits laser emission when there are creatures ahead. Security guarantee. |
| Anti-fall protection | Dumping and falling automatically alarm stop laser |
| GPS | GPS recording and tracking are prohibited from device misuse or loss of tracking. |
| Host size | 555*375*235mm with suitcase |
| Weight of the host | Laser generator 6kg +battery 2kg+Aluminum box 3.4kg |
| Weight of the laser head | 1.8kg |
| Robotic Pan-Tilt Head+tripod | 4.2kg with a bag, 730mm shortened, 1800mm extended |
| Battery specifications | 48V12AH |
| operating time of the battery | Continue operating>60 minutes |
| Equipment safety lock | Key |
| Emergency stop function | E-STOP |
| Password authorization | Tablet password/fingerprint, software password |
| Night vision function | YES |
How does laser obstacle remover work?
